The WAAS enabled BU-353 GPS Receiver can be utilized in a variety of applications that may require a magnetic mounting with a waterproof configuration.

Mã SP:

Bảo hành: 12 Tháng

Đặt hàng: Giao ngay

Thông tin về sản phẩm

Manufacturer Description

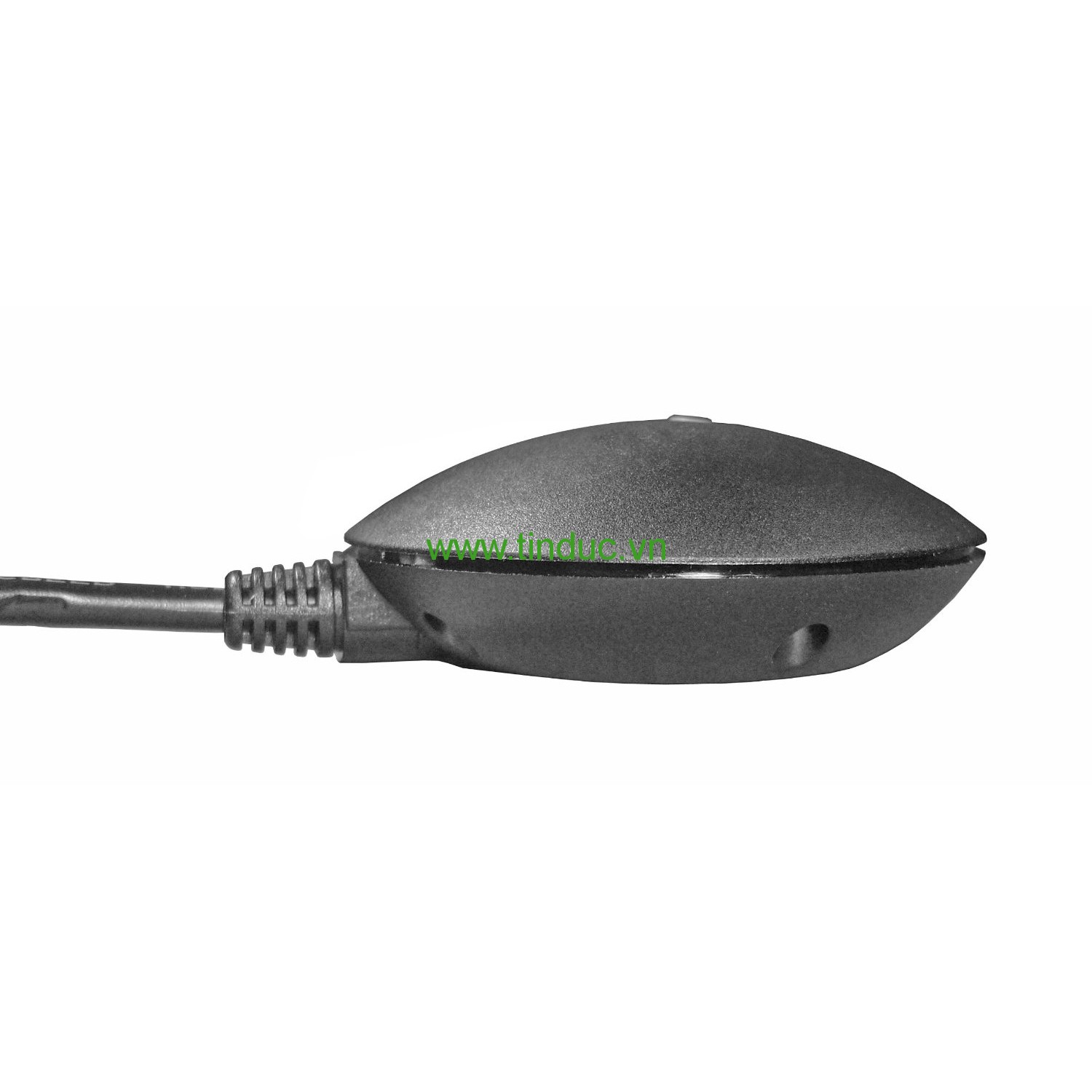

The WAAS enabled BU-353 GPS Receiver can be utilized in a variety of applications that may require a magnetic mounting with a waterproof configuration. With non-slip on the base and its compact design, the BU-353 is completely self-contained and waterproof. It incorporates the latest SiRF Star III GPS chipset and an active patch antenna so you receive the highest degree of GPS accuracy.

  Typical application may include, but not limited to marine, aviation, and commercial environments in such uses as fire truck, police cars, buses, utility and long haul vehicles. The extended 5 feet long cable allows for easy routing behind headliners and side panels to terminate at a USB connector for interfacing with your Laptop / iBook / PowerBook.

SiRF Star III High Performance GPS chipset - WAAS
High sensitivity (Tracking Sensitivity: -159 dBm)
Extremely fast TTFF (Time To First Fix) at low signal level
Support NMEA 0183 data protocol
Built-in SuperCap to reserve system data for rapid satellite acquisition
Built-in patch antenna.
Super-cohesive magnetic for mounting on the car
USB interface connection port.
Waterproof and non-slip on the bottom.
LED indicator for GPS fix or not fix.

LED OFF: Receiver switch off
LED ON: No fix, signal searching
LED Flashing: Position fixed

The BU353 is not compatible with Windows 8. Please check out the BU353-S4 for Windows 8.

Features and Tips

Here is a listing we have put together of some of the common

BU353 USB Cable GPS features

, along with a few user tips that you may find of help for this particular item.

SiRF Star III High Performance GPS chipset - WAAS
High sensitivity (Tracking Sensitivity: -159 dBm)
Extremely fast TTFF (Time To First Fix) at low signal level
Support NMEA 0183 data protocol
Built-in SuperCap to reserve system data for rapid satellite acquisition
Built-in patch antenna.
Super-cohesive magnetic for mounting on the car
USB interface connection port.
Waterproof and non-slip on the bottom.
LED indicator for GPS fix or not fix.

LED OFF: Receiver switch off
LED ON: No fix, signal searching
LED Flashing: Position fixed

Specifications:

Chipset: SiRF Star III v3.1.1 firmware WAAS Enabled by default
Frequency: L1, 1575.42 MHz
C/A code: 1.023 MHz chip rate
Channels: 20 channel all-in-view tracking
Sensitivity: -159 dBm
Accuracy Position: 10 meters, 2D RMS; ~5 meters, 2D RMS WAAS enabled
Velocity: 0.1 m/s
Time: 1us synchronized to GPS time

Datum

Default: WGS-84

Protocol:

GPS Protocol: Default: NMEA 0183 (Secondary: SiRF Binary) SiRF Binary>> Position, Velocity, Altitude, Status and Control
GPS Output Data: NMEA 0183 MEA V2.2 Protocol and supports command: GGA, GSA, GSV, RMC, VTG, GLL v2.2 (VTG and GLL are optional)
GPS Transfer Rate: Software Command setting (Default: 4800,n,8,1 for NMEA)

Acquisition Time

Reacquisition: 0.1 sec., average
Hot start: 1 sec., average
Warm start: 38 sec., average
Cold start: 42 sec., average

Dynamic Conditions

Altitude: 18,000 meters (60,000 feet) max
Velocity: 515 meters /second (1000 knots) max
Acceleration: Less than 4g
Jerk: 20m/sec

Power

Main power input: 4.5V ~ 6.5V DC input
Power consumption: 80mA
Protocol Electrical level: TTL level
Output voltage level: 0V~2.85V

Physical Characteristics

Dimension: 2.08" Dia (53mm dia, 19.2mm height)
Cable length: 60”
Operating temperature: -40F ~ +185F ( -40C to +85C)

US GlobalSat BU353 USB Cable GPS Specifications

General
1.	Unit dimensions, WxHxD:	2.08 inch diameter X 0.75 inch high
2.	Weight:	2.2 oz
3.	Waterproof:	Yes (IPX7)
4.	GPS-enabled:	Yes
5.	Floats:	No
6.	PC interface:	USB
OEM
7.	Operating Current (mA)	50 mA typical
8.	Input Voltage	5V from USB port
9.	Chipset	SiRF Star III e/LP
10.	Operating Temperature	-40 to +80 C
11.	Update Rate	1 Hz
12.	Number of Data Ports	1
13.	Port 1 protocols	NMEA 0183
14.	Outputs	1
15.	PPS	No
16.	Receiver Sensitivity	-159 dBm
17.	Reacquisition Times	0.1 sec
18.	Acquisition Times (Warm)	38 sec
19.	Acquisition Times (Cold)	45 sec
20.	AutoLocate Time	N/A
21.	SkySearch Time	N/A
22.	Accuracy with WAAS	5m 2D RMS
23.	Accuracy with DGPS Source	No DGPS
24.	Dynamics	60,000 feet @ 515 m/s max
25.	Channels	20
26.	WAAS Enabled	Yes
