Pushbutton Navigation
- 8.4" (31.3 cm) VGA display
- G Motion™ technology
- Interfaces with radar, sonar and other sensors
- Preloaded BlueChart® g2 coastal U.S. maps
- Fusion audio system integration

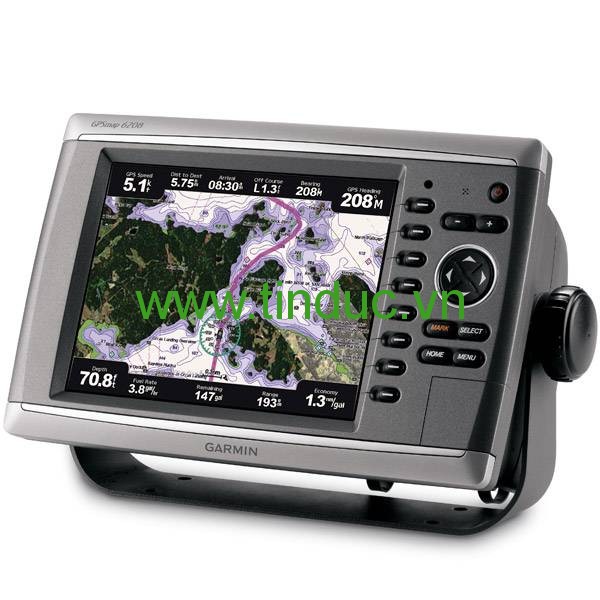

Unleash a new level of power across your helm with the GPSMAP 6208. This premier chartplotter is the next evolution in Garmin’s series of full-featured marine products. The GPSMAP 6208 comes standard with preloaded BlueChart® g2 maps of the U.S. coast as well as video-quality resolution on an 8.4” (21.34 cm) VGA display. The GPSMAP 6208 also provides total system integration – allowing support for the addition of sonar, radar, weather and more. For additional enhanced features, you can add the optional BlueChart® g2 Vision® card (sold separately).
Designed to Move
The GPSMAP 6208 brings unprecedented speed to your vessel with Garmin G Motion™ technology – the future of marine technology today. With blazing-fast map redraw and refresh rates, you’ll have near real-time data to guide you. Whether you’re in a crowded harbor or in uncertain weather, you’ll have the confidence you need to navigate your surroundings with the GPSMAP 6208 as your guide. The GPSMAP 6208 also is compatible with an optional remote for added flexibility. And with a sleek and stylish design that was built to brave the elements, the GPSMAP 6208 looks great in any helm.
View Detailed Graphics and Video
The GPSMAP 6208 features highly detailed BlueChart g2 marine cartography of the coastal U.S., including Alaska, Hawaii and the Bahamas. And for more detail, you can easily add maps with the SD™ card slot without having to connect to a computer. The GPSMAP 6208’s high-speed processor draws maps quickly, and its simple intuitive interface makes navigating easy. To keep tabs on your engine room or other area of your boat, you also can connect a live video feed with the GPSMAP 6208’s video input and output options. The GPSMAP 6208 also comes standard with a wide range of brightness options - from sunlight-readable to low-light conditions, you can adjust the setting to match your conditions.
Add Extras with BlueChart g2 Vision
With the optional BlueChart g2 Vision SD card, you can add a whole new dimension of exceptional features to your chartplotter.
- MarinerEye view and FishEye view provide you a 3-D perspective of map information, both above and below the waterline.
- High-resolution satellite images and aerial photographs help you orient yourself in unfamiliar areas.
- Auto Guidance technology searches through all relevant charts to create a route you can actually follow — one that avoids obstacles, shallow water, buoys and other obstructions.
Connect to Your Network
The GPSMAP 6208 easily connects to your network - providing system integration so you can interface with additional MFDs and add remote sensors. Once connected, you can share information between the GPSMAP 6208 and other chartplotters on your boat. You also can add high-powered radar, sonar and XM satellite weather and radio to your system.
Control Fusion Audio Systems
Enjoy full control of your Fusion audio system through your chartplotter for up to 4 separate listening zones. Access iPod®/iPhone® menus; browse playlists, artists and songs. Control audio sources for SiriusXM, DVD, iPod/iPhone, Aux, USB and AM/FM. And of course, you have complete control of volume, track, pause, play, balance and subwoofer. Available accessories (sold separately) include a wireless mouse and an RF remote. Both are waterproof and make controlling your stereo even easier.
Physical & Performance
|
|
Unit dimensions, WxHxD
|
11.5" x 7.4" x 5.9" (29.2 x 18.9 x 14.9 cm)
|
|
Display size, WxH
|
6.8" x 5.1"; 8.4" diagonal
(17.1 x 13 cm; 21.3 cm diagonal)
|
|
Display resolution, WxH
|
640 x 480 pixels
|
|
Display type
|
VGA display
|
|
Weight
|
11.3 lbs (5.1 kg)
|
|
Water rating
|
IPX7
|
|
Receiver
|
10 Hz high-sensitivity
|
|
Antenna
|
External only
|
|
Mounting options
|
Bail or flush
|
|
Power consumption
|
Max power usage at 10 Vdc: 35 W
Max current draw at 12 Vdc: 2.2 A
|
Maps & Memory
|
|
Preloaded maps
|
BlueChart® g2 (coastal maps)
|
|
Accepts data cards
|
1 SD™ card
|
|
Waypoints
|
5,000
|
|
Routes
|
100
|
|
Track log
|
50,000 points; 50 saved tracks
|
Features & Benefits
|
|
Garmin Radar compatible
|
Yes
|
|
Garmin Sonar compatible
|
Yes (with GSD™ black box, sold separately)
|
|
NMEA 2000® compatible
|
Yes
|
|
NMEA 0183 compatible
|
Yes
|
|
Garmin Marine Network™ compatible
|
Yes
|
|
Garmin SmartMode compatible (customizable monitor presets)
|
No
|
|
Supports AIS (tracks target ships position)
|
Yes
|
|
Supports DSC (displays position data from DSC-capable VHF radio)
|
Yes
|
|
Tide tables
|
Yes
|
|
Garmin Meteor Audio System compatible
|
Yes
|
|
Supports Fusion Lync compatible marine radios
|
Yes
|
|
GSD™ Black Box sonar support
|
Yes
|
|
GCV™ Black Box sonar support
|
No
|
|
SiriusXM™ Weather & Radio compatible
|
Yes
|
|
BlueChart® Mobile (planning) compatible
|
Yes (Wi-Fi Adapter Kit required, sold separately)
|
|
Garmin Helm compatible
|
No
|
|
GRID™ (Garmin Remote Input Device) compatible
|
No
|
|
Wireless remote compatible
|
Yes
|
|
Wireless mouse compatible
|
Yes
|
Sonar Features & Specifications
|
|
Dual-frequency (50/200 kHz) sonar capable
|
Yes (with compatible black box sonar)
|
|
Dual-beam (77/200 kHz) sonar capable
|
Yes (with compatible black box sonar)
|
|
CHIRP sonar technology
|
Yes (with external black box)
|
|
DownVü™
|
No
|
|
SideVü™
|
No
|
|
Voltage range
|
10-35 Vdc input
|
Connections
|
|
NMEA 0183 input ports
|
4
|
|
NMEA 0183 output ports
|
2
|
|
Video input ports
|
2 - RCA composite
|
|
Video output ports
|
1 - VGA
|
|
Wireless connectivity
|
Yes (Wi-Fi Adapter Kit required, sold separately)
|
|
Garmin Marine Network™ ports
|
3
|
- GPSMAP 6208
- Top and bottom snap covers
- Bail mount and knobs
- GPS 19x NMEA 2000® (with pole mount, flush mount and under deck mount adapters)
- Protective front cover
- Power cable
- Video cable
- NMEA 0183 cable
- NMEA 2000 drop cable
- NMEA 2000 10 m backbone cable
- NMEA 2000 power cable
- NMEA 2000 T-connector & terminator kit
- Flush mount hardware
- Flush mount gasket
- Marine grommet kit
- Manual case
- Manual case with user documentation
